Forklift Scales |
|
A forklift scale can save time and money by turning weighing into a one-step
operation. The scale is built into the forklift truck's carriage, so you get
an accurate weight reading simply by lifting a
pallet. It eliminates the need to transport pallets to a platform scale,
weigh them, and then remove the pallets afterward. The forklift driver can
control all weighing operations from a scale terminal mounted in the cab.
Choose from two communication options: wireless and wired. The wireless
version transmits weight data from the scale carriage to the scale terminal
via radio signal. The wired version transmits data from the carriage to the
terminal via cable. The forklift scale capacity is 5,000 lb by 0.5 lbs
Brochure |
|
VFS220 Forklift Scale
 |
Specifications - VFS220 Forklift Scale
| Maximum Capacity |
5,000 lb (2,000 kg) |
| Readability |
5 lb (2 kg) |
| Load Cell |
Two 5,000-lb, NIST H44 Class III |
| Mounting options |
Fits ANSI/ITSDF Class II carriage |
|
|
|
Specifications - MCSB/MCTB Forklift Scale
| Maximum Capacity |
5,000 lb (2,000 kg) |
| Readability |
5 lb (2 kg) |
| Load Cell |
Two 5,000-lb chain load cells, two
1,250-lb drag load cells |
| Mounting options |
Fits Mitsubishi and Caterpillar
forklift trucks |
|
|
Forklift Scale Controller |
|
|
VFSVT Forklift Scale Software |
Pallet Truck Scales |
| |
The BTA231 Pallet Truck Scale features a long-life,
rechargeable, battery for up to 95 hours of mobile operation. It is the
right choice for transport and weighing of palletized goods up to 4,000
pounds in a safe and easy manner. Rugged and cost-effective, this scale
features a dependable terminal including a large, easily visible display and
efficient keyboard. It is a perfect fit for any warehouse, where precise and
mobile weighing is crucial.
|
|
BTA221-555U Pallet Scale
 |
Specifications - BTA231-555U Pallet Scale
Brochure
| Max. Capacity |
4'000 lb |
| Readability |
2 lb |
| Fork size |
22" x 48" |
| Material |
Mild steel painted |
| Keypad |
7 membrane keys (On/Off, Zero, Tare,
Function, Clear, Print, Function 1 & 2) |
| Display |
7-digit, 7-segment 2.36", LCD display with
white backlight |
| Battery |
Battery: 6 VDC, 10 Ah (~95 hours operation
time) |
| Application |
Straight weighing, counting, over/under
checkweighing, totalizing |
| Features |
Date & Time (RTC), x10, Print, Unit
switch, Target storage |
|
|
|
Specifications - BTA231-690U Pallet Scale
| Max. Capacity |
4'000 lb |
| Readability |
2 lb |
| Fork size |
27" x 48" |
| Material |
Mild steel painted |
| Keypad |
7 membrane keys (On/Off, Zero, Tare,
Function, Clear, Print, Function 1 & 2) |
| Display |
7-digit, 7-segment 60mm/2.36", LCD display
with white backlight |
| Battery |
Battery: 6 VDC, 10 Ah (~95 hours operation
time) |
| Application |
Straight weighing, counting, over/under
checkweighing, totalizing |
| Features |
Date & Time (RTC), x10, Print, Unit
switch, Target storage |
|
|
 |
PTA46x/66x pallet truck scales are ideal for goods
receiving/shipping, manufacturing and packaging. The U-shaped design
requires no ramps or pits, so METTLER TOLEDO pallet scales cost less to
install, save floor space, speed up loading, and enhance safety. Because
wheeled vehicles never drive across the platform, there is less wear and
tear that can shorten a floor scale’s life.
| Capacity |
Size |
| 1,000 lb |
48"x48", 48"x60", 60x60" |
| 2,500 lb |
48"x48", 48"x60", 60x60" |
| 5,000 lb |
48"x48", 48"x60", 60x60" |
PTA464 Data Sheet
Rocker foot suspension
PTA469 Data Sheet
Rocker foot suspension
PTA664 Data Sheet
Rocker pin suspension
PTA669 Data Sheet
Rocker pin suspension
|
|
DECKMATE Floor Scales |
|
| |
DECKMATE® ultra-low-profile floor scales
are designed specifically for applications that require easy loading. Ideal
for barrel and tote, these scales are available in a permanent-mount or
portable wheeled version. Although extremely low profile, the scale deck is
reinforced to accommodate wheel loads. Rocker-pin suspension automatically
centers the scale platform for accurate weighing of every load. DECKMATE®
floor scales can be used in a wide variety of applications, including
weigh-out, batching, and filling. Available in 500-pound,
1,000-pound, 2,500-pound, and 5,000-lb capacities, 24" x 24", 30" x 30", 36"
x 36", 42" x 42", 48" x 48", and 48" x 60" sizes, and mild or stainless
steel.
Data Sheet
|
|
DECKMATE Floor Scale MS
|
Specifications - DECKMATE Floor Scale, MS
| Scale material |
Mild steel |
| Degree of protection |
IP67/IP69K |
| Hazardous area approval
|
FM, Ex, CSA |
| Accessories |
Ramps, Portability Kit,
Performance Tests |
| Capacity |
Size |
| 500 lb |
24"x24", 30"x30", 36"x36" |
| 1,000 lb |
24"x24", 30"x30", 36"x36", 42"x42",
48"x48", 48"x60" |
| 2,500 lb |
36"x36", 42"x42", 48"x48", 48"x60" |
| 5,000 lb |
48"x60" |
|
|
DECKMATE Floor Scale SS
 |
Specifications - DECKMATE Floor Scale, SS
| Scale material |
Stainless steel |
| Degree of protection |
IP67/IP69K |
| Hazardous area approval
|
FM, Ex, CSA |
| Accessories |
Ramps, Portability Kit,
Performance Tests |
| Capacity |
Size |
| 500 lb |
24"x24", 30"x30", 36"x36" |
| 1,000 lb |
24"x24", 30"x30", 36"x36", 42"x42",
48"x48", 48"x60" |
| 2,500 lb |
36"x36", 42"x42", 48"x48", 48"x60" |
| 5,000 lb |
48"x60" |
|
|
DECKMATE Portable Scale MS
 |
Specifications - DECKMATE Portable Scale, MS
| Maximum Capacity |
500 lb / 1,000 lb / 2,500 lb |
| Readability |
0.05 lb / 0.1 lb / 0.2 lb |
| Scale material |
Mild steel |
| Degree of protection |
IP67/IP69K |
| Hazardous area approval |
FM, Ex, CSA |
| Accessories |
Ramps, Battery and Indicator Brackets,
Performance Tests |
| Capacity |
Size |
| 500 lb |
24"x24", 30"x30" |
| 1,000 lb |
30"x30", 36"x36", 42"x42" |
| 2,500 lb |
36"x36", 42"x42" |
|
|
DECKMATE Portable Scale SS
 |
Specifications - DECKMATE Portable Scale, SS
| Scale material |
Stainless steel |
| Degree of protection |
IP67/IP69K |
| Hazardous area approval |
FM, Ex, CSA |
| Accessories |
Ramps, Battery and Indicator Brackets,
Performance Tests |
| Capacity |
Size |
| 500 lb |
24"x24", 30"x30" |
| 1,000 lb |
30"x30", 36"x36", 42"x42" |
| 2,500 lb |
36"x36", 42"x42" |
|
|
Overhead Monorail Scales
 |
0990 monorail scales provide reliable weighing from an
overhead track. The self-contained weighing assembly is easy to install in a
new or existing monorail system. This line of monorail scales is designed to
withstand high pressure washdown with hermetically sealed stainless steel
load cells.
Specifications - Monorail Overhead Track Scale
1,250 lb
| Maximum Capacity |
1250.0 lb |
| Readability |
0.5 lb |
Monorail Overhead Track Scale 2,500 lb
Specifications - Monorail Overhead Track
Scale 2,500 lb
| Maximum Capacity
|
2500.0 lb |
| Readability
|
1 lb |
Brochure
Data Sheet
|

|
|
Wired Data Sheet
Wireless Data Sheet
|

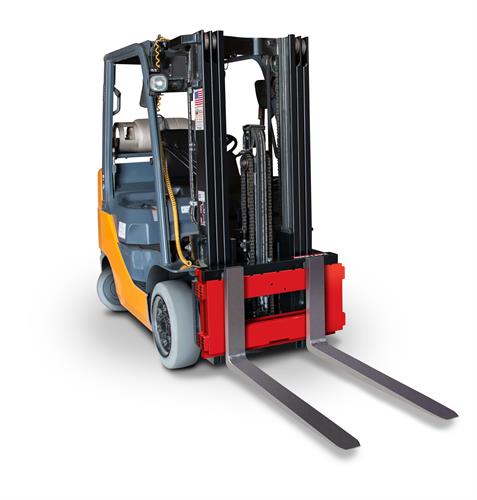

Scale Carriage
- Compatible with Class II (16 in H) or III (20 in H) forklift cleat type carriages
- Out of level NTEP Certified tolerance at seven degrees
pitch and roll, three degrees side to side
- 1 1/2 in thick front and back painted steel plates coupled
by four flexures
- Top cleats are welded, pinned and bolted
- Welded centering pin
- Two 5,000 pound s-beam load cells
- Updated iQube2® junction box with inclinometer
- Molded coiled cable, up-to 15 ft uncoiled
420 Plus Indicator
- Stainless steel enclosure
- On/Off switch to conserve forklift battery life
- Front panel calibration
- Full numeric keypad for manual tare entry
- Accumulate weight function using the print key for multiple
pallets
- Single RS-232 port transmits time, date and weight for
interface to PC or printer
- Two piece top cage indicator mounting assembly with vibration
mounts
- 9-36 VDC power supply for use on propane forklifts or 10-60
VDC power supply for use on electric forklifts.
|
|
Wired Data Sheet
Wireless Data Sheet
|
Scale Carriage
- Compatible with Class II 16 in (H) or Class III 20 in (H) forklift cleat type carriages
- Out of level NTEP Certified tolerance at seven degrees pitch and roll, three degrees side
to side
- 1 1/2 in - thick front and back painted steel plates coupled by four flexures
- Top cleats are welded, pinned and bolted
- Welded centering pin
- Two 5,000 lb s-beam load cells
- Updated iQube2® junction box with inclinometer
- Molded coiled cable, up to 15ft uncoiled
920i Indicator
- (W x H) 4.6 x 3.4 in, back lit LCD graphical display (320 x 420 pixels)
- Standard user program with data collection and limited transaction storage
including selectable tracking number, employee ID, pallet dimensions,
product and customer fields. Selectable built in applications
such as checkweigh, accumulation, auto store and more. See
operators guide for more details.
- Front panel calibration or calibrate through iQUBE2® junction box using Revolution®
software
- 64,000 lb user on-board RAM with storage for 50 product tables and 300 weighments
- On/Off switch to conserve forklift battery life
- Painted mild steel enclosure
- Two piece top cage indicator mounting assembly with vibration mounts
- Two available RS-232 ports for added options of scanner, Wi-Fi or printer
- 10-60 VDC power supply for use on propane or electric forklifts
|
|
Data Sheet
|

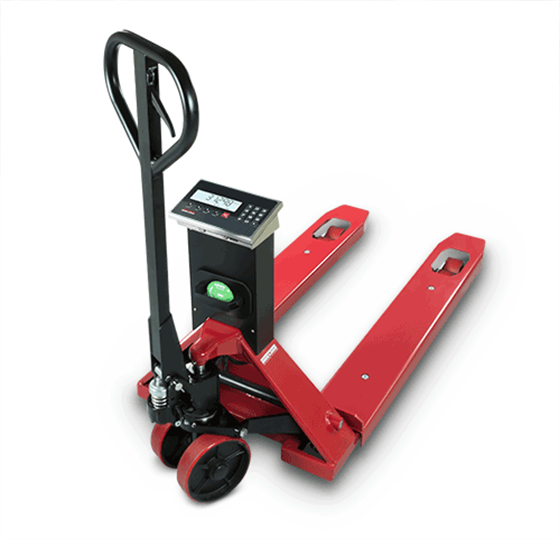

Specifications
- Heavy-gauge steel with a durable powder coat finish
- Steering wheels and double loading polyurethane rollers
- Four stainless steel IP68 load cells
- Weight indicator in IP65 stainless steel water-resistant
enclosure
- Large 1 inch (25 mm) LCD display high contrast digits and
waterproof membrane keyboard with 17 functional keys
- Configuration, calibration and diagnostics from keyboard
- Rechargeable battery mounted on the pallet jack
- Battery life is 80 hours of continuous use or one month of
non-continuous use
- Zero and tare functions
- Net/Gross and lb/kg conversion
- Accumulation
- Formulation
- +/- Checkweighing
- Percentage weighing
- Counting (Max. resolution of 1,500,000 divisions)
- Peak hold
- Includes a 115VAC 50/60 Hz battery charger
|
