Concrete-Deck Scales for Above-Ground Installation

Model 7531 is a concrete-deck scale (commercial duty) for weighing highway vehicles. It is designed for above-ground installation. Driving surface is reinforced concrete (8 inches thick) with a modular steel framework. Steel I-beam framework is assembled on site and provides a built-in side rail for safety. POWERCELL load cells transmit a powerful signal for accurate, reliable weighing.

Data Sheet

• Profile: 19.5 inches
• 45,000-lb dual tandem axle rating
• Easily assembled bolt-together design lowers shipping costs
• No crane required to set modules
• Heaviest component weighs 1,500 lb
• Steel blasted to SSPC-SP6
• POWERCELL load cells with self-diagnostic capabilities
• NEMA 4X stainless steel junction boxes
• Cables with stainless steel sheath
• 5-year guarantee / StrikeShield lightning protection
• Epoxy-painted steel resists corrosion

7541 Truck Scales

Concrete-Deck Scales for Pit Installation

Model 7560 is a concrete deck scale for weighing over-the-road legal vehicles. It is a composite design that uses an 8-inch-thick concrete deck with a modular steel framework. The concrete pans come from the factory ready to receive concrete without any field welding or rebar placement required. This simplifies installation and ensures the overall quality of the deck.

Data Sheet

• Low profile: 11.5 inches
• 55,000-lb dual tandem axle continuous duty
• Optimal construction uses standard 4,000 psi concrete
• No additional forming or rebar required
• Steel blasted to SSPC-SP6
• POWERCELL load cells with self-diagnostic capabilities
• NEMA 4X stainless steel junction boxes
• Cables with stainless steel sheath
• Top access to load cells, junction boxes, and checking
• Lightning protection system prevents damage
• Epoxy-painted steel resists corrosion

Model 7560 is a steel deck scale for weighing over-the-road legal vehicles. The steel deck is reinforced by orthotropic ribs. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. By combining the strength of an orthotropic weighbridge with the reliability of POWERCELL^® PDX^® load cells, this truck scale ensures that you will get years of trouble-free weighing even in the harshest environments and toughest applications.

Data Sheet

• Low profile: 11.5 inches
• 55,000-lb dual tandem axle continuous duty
• Optimal construction uses standard 4,000 psi concrete
• No additional forming or rebar required
• Steel blasted to SSPC-SP6
• POWERCELL load cells with self-diagnostic capabilities
• NEMA 4X stainless steel junction boxes
• Cables with stainless steel sheath
• Top access to load cells, junction boxes, and checking
• Lightning protection system prevents damage
• Epoxy-painted steel resists corrosion

Model VTC100 is a concrete deck truck scale that delivers proven performance at an affordable price with ANALOG load cells. It combines a concrete driving surface with a robust orthotropic understructure. The composite design draws upon the strengths of both concrete and steel to produce an exceptionally durable structure. It eliminates a common cause of premature deck failure: voids in the deck that occur when pouring concrete around I-beam flanges and sharp corners. As a result, you get a weighbridge capable of handling legal over-the-road traffic throughout a long service life.

Data Sheet

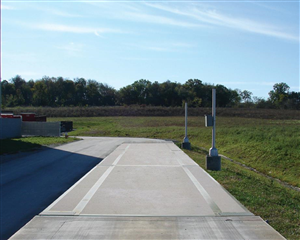

Model VTC251 sets the industry standard for concrete deck truck scales and is the ideal choice for a wide variety of vehicle weighing applications. The steel deck is supported by orthotropic ribs that are completely sealed from the elements by automated, continuous welds. By pressure testing every rib, we ensure an airtight seal that eliminates the potential for rusting from the inside, unlike scale designs that sandwich beams between top and bottom plates using intermittent welds. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. By combining the strength of an orthotropic weighbridge with the reliability of POWERCELL^® PDX^® load cells, this truck scale ensures that you will get years of trouble-free weighing even in the harshest environments and toughest applications.

VTC-250 Data Sheet

VTC-251 Data Sheet

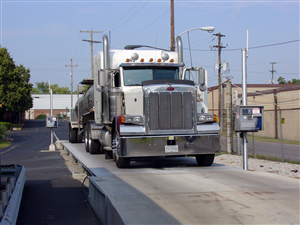

Model VTS100 is a steel deck truck scale that delivers proven performance at an affordable price with ANALOG load cells. It consists of a steel deck supported by orthotropic ribs that are completely sealed from the elements by automated, continuous welds. By pressure testing every rib, we ensure an airtight seal that eliminates the potential for rusting from inside, unlike scale designs that sandwich beams between top and bottom plates using intermittent welds. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. As a result, you get a weighbridge capable of handling legal over-the-road traffic throughout a long service life.

Data Sheet

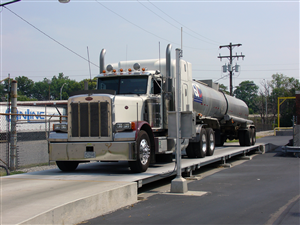

Model VTS101 is a steel deck truck scale with POWERCELL^® PDX^® load cells technology added as a standard feature. It consists of a steel deck supported by orthotropic ribs that are completely sealed from the elements by continuous, automated welds. By pressure testing every rib, we ensure an airtight seal that eliminates the potential for rusting from inside, unlike scale designs that sandwich beams between top and bottom plates using intermittent welds. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. As a result, you get a weighbridge capable of handling legal over-the-road traffic throughout a long service life. By combining the strength of an orthotropic weighbridge with the reliability of POWERCELL^®, this truck scale ensures that you will get years of trouble-free weighing even in the harshest environments.

Data Sheet

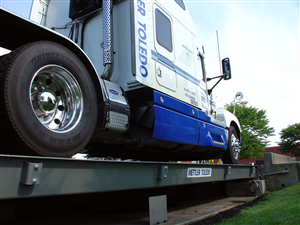

Model VTS231 is the strongest METTLER TOLEDO steel deck truck scale. It combines a ready to weigh steel deck driving surface with a robust orthotropic understructure. The continous welded orthotropic rib design eliminates a common cause of premature deck failure: broken spot welds in high stress areas of the deck. As a result, you get a weighbridge capable of handling high volumes of traffic over a long service life. Model VTS231 uses POWERCELL^® PDX^® load cells, which offer unequalled reliability and a predictive diagnostics system designed to keep your scale up and running. By combining the strength of an orthotropic weighbridge with the reliability of POWERCELL^® load cells, this truck scale ensures that you will get years of trouble-free weighing even in the harshest environments.

Data Sheet

Model 7566 is a steel-deck scale for weighing off-road vehicles used in mining, steel, aggregate, forestry, and other similar operations. This rugged scale is built to provide dependable performance for extreme duty applications. It is available as a single-width scale (11 feet 10 inches wide) or a double-width scale capable of handling the industry's largest off-road vehicles. The orthotropic design provides reliable weighing over a long service life, while the POWERCELL^® PDX^® load cells transmit an extremely powerful signal for accurate, dependable weighing.

Data Sheet

• Profile: 30 inches
• 250,000-lb dual tandem axle peak duty
• 3/8-inch tread plate deck precambered to eliminate ponding
• Steel blasted to SSPC-SP6
• Submerged arc welding in accordance with AWS D1.1
• No welds in the highest stress areas
• Sealed orthotropic rib chambers will not rust from inside out
• MTX load cells with self-diagnostic capabilities
• NEMA 4X stainless steel junction boxes
• Cables with stainless steel sheath
• Lightning protection system prevents damage
• Epoxy-painted steel resists corrosion

Brochure

The basic portability option is compatible with numerous standard steel deck modular weighbridge models. The scale uses a bolted frame that is assembled on site. The basic portability option is a cost-effective solution to accommodate seasonal relocation of the scale.

The VTS231 Premium Portable truck scale is a steel-deck scale for weighing over-the-road vehicles. This portable scale is ideal for construction, demolition, logging, sand, gravel, and other operations that move from one job site to another. Its modules are factory assembled and easy to install or move. Orthotropic ribs add torsional rigidity for off-center loading. POWERCELL^® PDX^® load cells transmit a powerful signal for accurate, reliable weighing.

• Profile: 24 inches
• 80,000-lb CLC / dual tandem axle rating
• 5/16-inch tread plate deck precambered to eliminate ponding
• Steel blasted to SSPC-SP6
• Submerged arc welding in accordance with AWS D1.1
• No welds in the highest stress areas
• Sealed orthotropic rib chambers will not rust from inside out
• POWERCELL load cells with self-diagnostic capabilities
• NEMA 4X stainless steel junction boxes
• Cables with stainless steel sheath
• Top access to load cells, junction boxes, and checking
• 5-year guarantee / StrikeShield lightning protection
• Epoxy-painted steel resists corrosion

Model VKR208 is a complete kit for converting a vehicle scale for fully electronic operation. This system of POWERCELL^® GDD^® load cells can be installed under an existing weighbridge. It replaces costly analog load cells or high-maintenance mechanical lever systems. POWERCELL^® GDD^® load cells transmit a powerful signal for accurate, reliable weighing.

• Easy-to-install kit
• Load cell capacity: 25, 45, or 90 metric tons
• Configuration: 4 cells to 24 cells
• Hermetically sealed load cells
• IP68 stainless steel junction boxes
• Cables with stainless steel sheath
• POWERCELL^® load cells with self-diagnostic capabilities

Data Sheet

Model VKR210 is a complete kit for converting a vehicle scale for fully electronic operation. This system of POWERCELL^® load cells can be installed under an existing weighbridge. It replaces costly analog load cells or high-maintenance mechanical lever systems. POWERCELL^® load cells transmit a powerful signal for accurate, reliable weighing.

• Easy-to-install kit
• Load cell capacity: 25, 45, or 90 metric tons
• Configuration: 4 cells to 24 cells
• Hermetically sealed load cells
• IP68 stainless steel junction boxes
• Cables with stainless steel sheath
• POWERCELL^® load cells with self-diagnostic capabilities

Data Sheet

Give your existing weighbridge the advantage of reliable POWERCELL^® PDX^® technology with a Model VKR211 load cell conversion kit. This easy-to-install kit upgrades a weighbridge by using POWERCELL^® PDX^® load cells to replace high-maintenance lever systems, analog load cells, and hydraulic load cells. Kits are also available to update previous generations of POWERCELL^® load cells. Combine the VKR211 conversion kit with an IND560 or IND780 terminal and other time-saving options to fully upgrade your vehicle-weighing operation.

Load Cell Capacities
30t  (66,000 lb / 30,000 kg)
50t  (110,000 lb / 50,000 kg)

Data Sheet

Model 7360 vehicle scales can be used to weigh both trucks and railroad cars. They are ideal for grain elevators and other operations where both types of vehicles are weighed. Reduces costs because one scale can handle all weighing needs. Weighbridge converts a section of railroad track into a scale. Trucks are weighed on an integral concrete deck (8 inches thick). POWERCELL load cells transmit a powerful signal for accurate, reliable weighing.

Data Sheet

7260 rail scales provide accurate weighing of rail cars. Static scales are designed for weighing an individual rail car that is stopped on the scale. Weighbridge converts a section of railroad track into a scale. Weighbridge is designed to meet AREMA requirements for Cooper E-80 loading. POWERCELL load cells transmit a powerful signal for accurate, reliable weighing.

• Length: 12.5´ to 250´
• Steel deck standard, concrete deck option
• Single draft, dual draft, continuous length, coupled in-motion
• Custom scales for all rail sizes and gauges
• 12.5´ coupled, in-motion weighing option
• Pandrol e-clip rail fastening system option
• Durable stainless steel junction box stands
• Steel blasted to SSPC-SP6
• POWERCELL load cells with self-diagnostic capabilities
• Top access covers
• NEMA 4X stainless steel junction boxes
• Cables with stainless steel sheath
• Lightning protection system prevents damage

Data Sheet

No matter how demanding your application is, METTLER TOLEDO has a railroad track scale to handle the job. VRS241 scales are available for static weighing or coupled in-motion weighing. Choose between two deck options: a concrete deck with manholes and a steel deck with removable plates. Both provide easy access to the load cell network. VRS241 scales are designed to handle the massive loads applied by rail traffic. They are built to last, with the strongest structural components fully supporting the rails. METTLER TOLEDO scales are designed to weigh rail cars safely, accurately, and reliably.



Static Weighing

The static version of the VRS241 scale weighs uncoupled rail cars that are stopped on the scale. A typical installation consists of two weighbridges that are spaced to provide single-draft weighing for various lengths of rail cars.









In-Motion Weighing

The coupled in-motion (CIM) version of  the scale weighs rail cars that are coupled together and moving across the scale at 3 to 5 miles per hour. It makes weighing quicker and safer by eliminating the need to uncouple rail cars and position them on a static scale.









Data Sheet

Each weigh pad is sealed from environmental influences and provides 10 tons of loading capacity. Integral loading ramps and a nonskid base provide safe and easy vehicle loading on virtually any type of surface including dirt, concrete, asphalt or gravel.

Load Ranger's self-contained digital display provides easy operator viewing of weights to the nearest 20 or 50 pound increments at an accuracy of 1.0%. Push-button controls for On/Off and Zero make operation simple with continuous use up to 40 hours. An external battery charger (110/230 VAC and 12 VDC) is provided to recharge batteries conventionally or from vehicle power.

The Load Ranger is tested and approved to NTEP Class IV standards.

Data Sheet

Law Enforcement Approval

Built with the same technology as standard PT300^™ scales, PT300DW^™ scales are wider to accommodate dual or super-single tires and are available in capacities up to 40,000lbs (20,000kgs).

Data Sheet PT-300^™

LP-600^™ Low-Profile Wheel Load Scales

Weighing a mere 54lbs (24kgs) with a profile of just 1.5" (38mm), the LP600^™ Low-Profile Wheel Load Scale weighs loads up to 30,000lbs (15,000kgs) with an accuracy of ^±1%.  They also feature Fully Integrated RFX^™ Wireless Weighing Technology making it possible to sequentially couple and number scales, as well as link them to a multitude of Intercomp weighing indicators. Additionally, built in solar charging panels virtually eliminate the need to manually recharge batteries between uses.

Intercomp's low profile, portable axle scale gives you the accuracy to weigh most any over the road vehicle. Its ultra lightweight design (only 400 lbs. per platform) makes this portable scale easy to set up. Each scale system comes complete with high strength aluminum ramps and Intercomp's PT20^™ Axle Weigher indicator. This digital battery operated indicator has a built-in charger, printer, jumbo sized display, memory and numerous other standard features.

• Two (2) each aluminum or steel platforms with 2 ramps each (total of 4)
• Weighbridge - 7'L x 32"W x 3 1/2"H aluminum or 5 1/2"H steel construction.
• Stainless steel protected load cells
• Overall dimensions with ramps 10'L x 32"W x 3 1/2"H aluminum or 5 1/2"H steel
• Overall Capacity - 60,000 lb (30,000 lb per platform)
• Axle capacity - tandem platforms - 60,000 lb.
• PT20^™ Indicator: 60,000 lb x 50 lb graduations (for portable installations) or 60,000 lb x 20 lb graduations (for permanent installations)
• Shipping weight - approximately 400 lbs per platform aluminum, 600 lbs per platform steel.

Data Sheet AX-900^™
