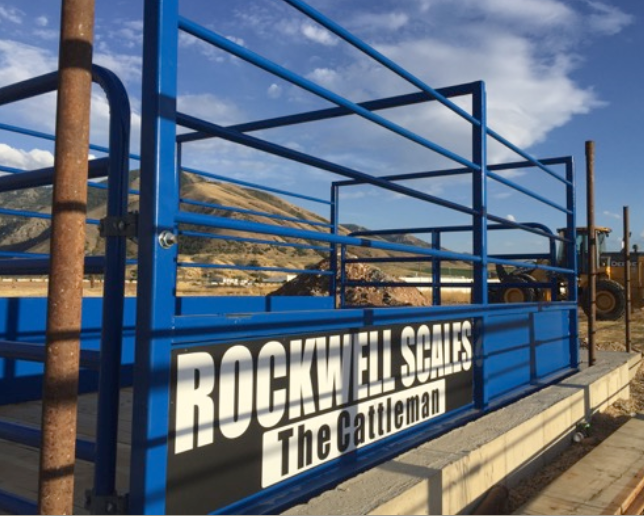

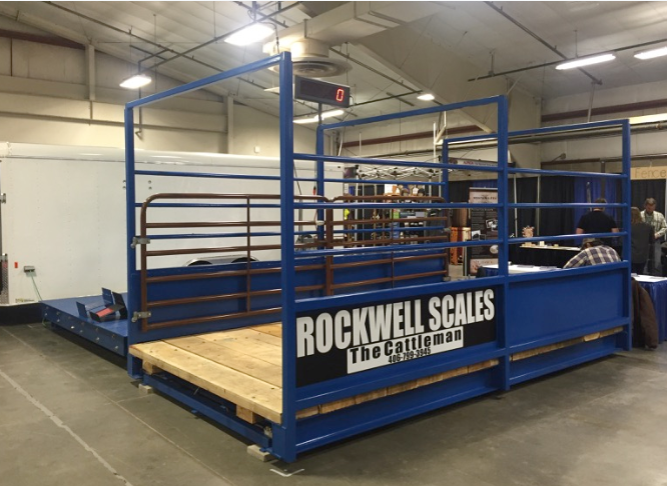

The Rockwell Cattleman

The Rockwell Cattleman livestock scale delivers American made quality and unsurpassed reliability without breaking the bank. Supported by a steel I-beam under structure, the Cattleman’s 3” fir deck withstands decades of hooves digging into it and boasts a track record of durability in the harshest climates. A rack constructed of 12 gauge sheet, with 2-1/2 inch x .120 square tubing posts and 1-1/4 inch schedule 40 tubing is heavier than any paneling on the market and built to withstand the pressure of heavy livestock abusing it. All wiring is 100% encased in conduit from the cells all the way in to the junction box to avoid any possible rodent destruction. The Cattleman comes in a standard 8’x15’ size and custom sizes are available upon request. NTEP approved and 100% legal-for-trade in all 50 states, the Cattleman livestock scale is everything you need and nothing you don’t.

Standard features include:
· Heavy Duty Pen and Gates
· 3 inch Fir Decking
· Up to 25,000 Pound Capacity
· Four 10,000 Pound Nickel Plated Load Cells
· 50% Overload Capacity
· 100% Conduit Encased Wiring
· Latching Gates
· Sherwin Williams Industrial Paint
· 10 Year Structural Warranty – 2 Year on Electronics

Optional features:
· Custom Sizes
· Up to 5ft. Sheet Metal Rack
· Cement Deck
· Increased Warranties
· Ticket & Receipt Style Printers
· Head Count & Lot Number
· Outside Display & More

Group Weighers

Rockwell Scales makes two different Group Animal scales. The
Cattleman, shown top left, has a typical size of 8x15 and the
RLLT25K, shown top right, has a platform size of 10x20 and the
customer typically adds the pen and gates after installation.

Cattleman
• The Cattleman comes standard with a heavy-duty pen and gates.
• An optional higher solid siding can be added.

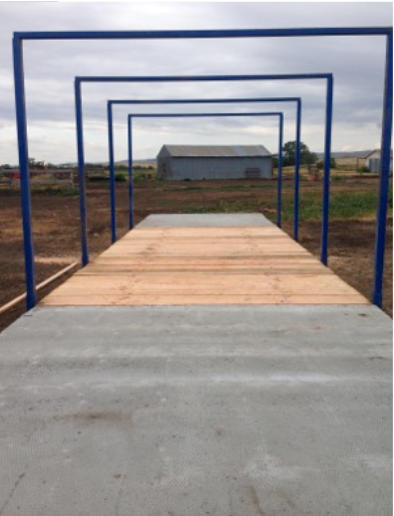

RLLT25K
• Buyer to provide pen and gates
• Optional pen and gates can be provided by Rockwell Scales

Features of both scales:
• 3” Fir decking. Thicker than all other competitors
• Four 10,000 pound Nickel Plated load cells
• 100% conduit encased wiring for full protection from rodents
• Sherwin Williams Industrial paint

Optional Features:
• Custom Sizes
• Multi-Platform Configuration
• Printers & exterior displays
• Programming for head count & lot numbers

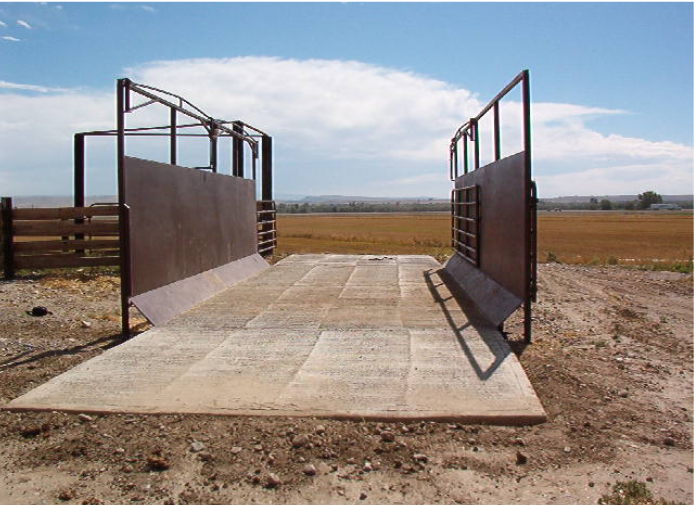

The Farmhand

Many farmers and ranchers have some crops or cattle in their operations. Why not get a scale that can weigh both? The Farmhand comes with a 12’ wide 26’ long cement deck with up to 100,000 pound capacity. Four 50K load cells can handle any load that can fit. The pen can be up to 14’ wide like pictured to the right, for weighing hay on your truck. The buyer can provide the pen and gates or Rockwell Scales can prefabricate them for on-site installation.

General Specifications:
                                 Capacities……………….…60,000 – 100,000
                                 Sections……………………………………2
                                 Modules…………………………..………1
Module Data:
                    Design………………………………...…….Orthotropic
                    Construction…………...………………..Structural Steel
                    Under Structure……………...……….Open Bottom
                    Approvals…………………………………NTEP CC# 99-063

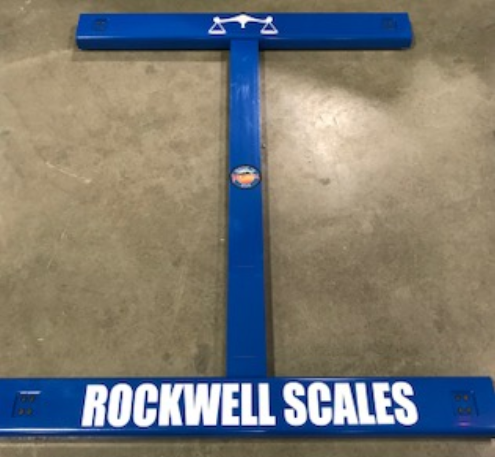

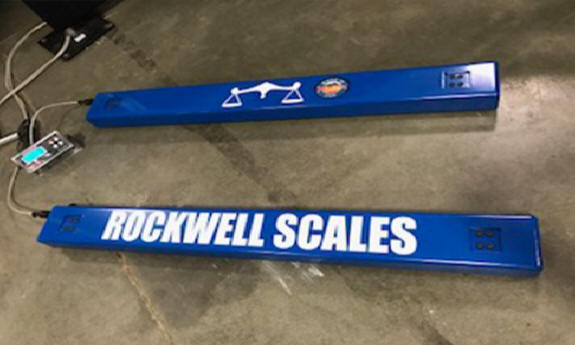

Alleyway Loadbars

• Available in 3,000 & 8,000 LB Capacities
• Heavy Duty ¼” steel construction with Industrial Paint or optional powder coating
• Custom sizes built to fit all platforms
• 20’ long braided cable for protection from rodents
• Fitted with high quality, moisture proof connectors
• No rubber mounts
• 2 year warranty on electronics, 5 year structural warranty
• Rechargeable Battery Powered and removable weight display
• Put them under a squeeze chute, under platforms for single animal weighing, under a sprayer or feeder

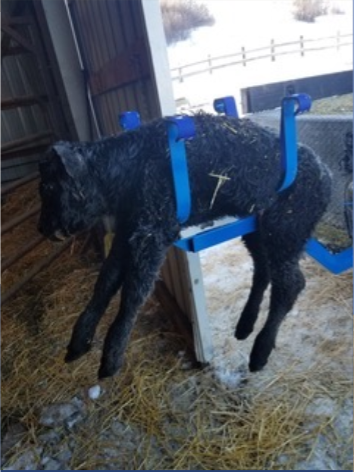

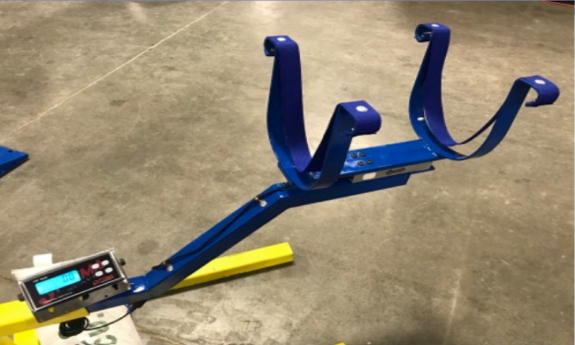

Calf “Hanger” Scale

Whether you’re looking to track your gains or if you want to administer the proper dose of medication the Calf Hanger is the easiest way to do so. Why would you want to pack around a 200 pound floor scale or some large bulky platform? The Calf Hanger slides in to the hitch on your pickup, quad or side-by-side. It has a 300 pound capacity to cover all your newborn livestock or weigh the biggest prize calf you’ve ever dreamed of! As with all Rockwell Scales, it is built right here in the USA and built to last. The indicator is rechargeable battery powered for portability and detachable from the scale for convenience and safe storage.

Custom Scales

Rockwell Scales wants to accommodate your weighing needs to the best of our ability. If there are any scales you need that you don’t see here or on our website please contact us and let us do our best to build you what you need. We appreciate our customers and strive to earn your business.

Agricultural Applications
